Car Tolling – A case for Edge Computing

Car Tolling – A case for Edge Computing

Governments often face tight budgets on infrastructure development; car tolling is increasingly seen as the answer for raising funds¹, making it more and more prevalent. From 2008 to 2018 the total length of tolled roads in Europe increased by 23%² and tolling revenue in Europe increased by 37%³ to €31.3 bn. per year; similarly, from 2010 to 2015 the United States experienced a 63% increase in transponders and 52% more tolling revenue, resulting in $13.8 bn. in 2015. On top, despite car sharing efforts, car ownership and traffic is still increasing in many countries, e.g. Germany, France and India. Increasing amounts of traffic, devices, and data points bring current tolling solutions to their limits. Taking data to the edge in new and existing tolling solutions, for example with the ObjectBox data storage and synchronization solution, can make tolling more efficient and reliable.

Setting the stage: a typical car tolling situation

A national infrastructure company has deployed several hundred car tolling stations all over the country. These stations automatically recognize passing cars by detecting licence plates, using visual recognition or wirelessly, e.g. by receiving data from an RFID transponder in the car. In order to ensure that only eligible cars are passing through the tolling station and violators are fined, it is necessary for the tolling station software to look up the gathered vehicle information – among millions of entries – as fast as possible. If the data look-up is not  fast enough, or the data on the roadsides/tolling stations isn’t up to date and in sync with the central data, the tolling station loses money.

“The importance of mobile apps is increasing for Kapsch TrafficCom so that we see ObjectBox’ edge computing database solution as an interesting future base technology for all types of mobility apps.”

Peter Ummenhofer

Executive VP Solution Management, Kapsch TrafficCom

Why edge computing and fast lookup is key to today’s car tolling systems

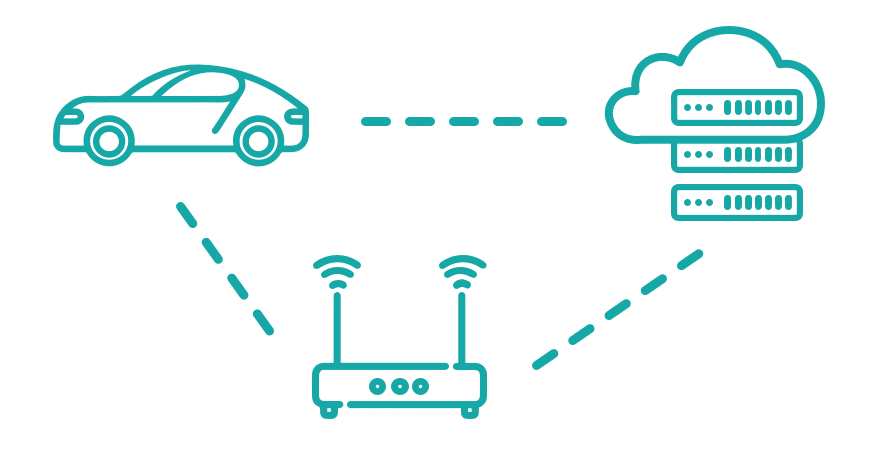

In general, modern nationwide tolling infrastructure consists of three systems: tolling stations operated by the respective agencies, central open road, also called mobile tolling, and central transaction clearing houses. Within this infrastructure, all data related to violators and other operational information needs to be synchronized between these three systems in a consistent way, with as little delay as possible. If this is not the case, together with other problems, car tolling system operators are faced with high monetary losses every day.

Today’s car tolling systems are based on the fundamental idea that cars do not need to stop to be checked or charged. Thus, as the cars move quickly through the scanning area, the challenge of implementing a car tolling system directly relates to the amount of data that needs to be searched within a very short time frame.  To be successful, this process needs to happen in near real-time. From a development perspective, these problems are rooted in:

  • accessing data from a remote location (speed of communication, speed of network)
  • keeping data in synchronization with car tolling stations that are closer to the drivers and/or roadside units
  • database speed on remote servers
  • database speed on roadside units (car tolling edge devices)
  • limitations of existing hardware as some systems are quite old, and rolling out new hardware is expensive

Furthermore, it is possible that stations shut down from time to time, due to the weather, power outages, vandalism or simply technical failures. However, tolling providers generally need to provide strict uptime guarantees and thus service level agreements often include penalty fees in case of excessive downtime. Such events cost the providers substantial amounts of money – and data loss, i.e. undetected violators, even more so.

Adding to this, privacy and legal requirements differ from country to country and increase the complexity of the systems and timings. For example, in Austria the pictures and derived license plate information may only be used for checking, but in case no violation was detected, they need to be removed in an unrecoverable manner¹⁰. On the other hand, the data of potential violators may be stored for the sole purpose of toll collection or prosecution, but only for a maximum of three years.

How fast data storage and syncing can help in car tolling

To solve these problems, a data storage and data synchronization solution like ObjectBox can be deployed on every type of tolling station, i.e. open and static stations, as well as on the central server. From a technical point of view, this is not a problem, because the ObjectBox library supports virtually all platforms and operating systems. Financially, it is considerably cheaper to update software, than it is to upgrade hardware.

Having the library installed, with ObjectBox Sync, it is guaranteed that the vehicle data in the internal stations’ memory is always up-to-date with the central server, so the station will make a decision based on the most accurate data every time. Additionally, the other systems involved in the tolling infrastructure consistently receive the most recent information with no further effort required.

Deploying the synchronization solution also means, because ObjectBox is particularly reliable (ACID compliant) and well-tested, that station shutdowns or internet connection issues are not a problem anymore. The stations’ operating company will no longer lose violator’s information due to technical reasons.

Summary – Car tolling is moving to the edge

As this case study shows, the use of edge computing is a perfect fit for modern infrastructure. In the context of car tolling, speed, reliable data storage and synchronization are indispensable, resulting in ObjectBox being an effective solution for today’s and future technological advancements.

If you are interested in learning more, feel free to get in touch with us! We appreciate any kind of feedback.

billiger.de Mobile App Case Study

billiger.de Mobile App Case Study

Arne Jans

Arne Jans

Software Developer, solute

Vivien: Hi Arne, great to talk with you today. Let’s get started by learning more about you and billiger.de.

Arne: Hi Vivien. I’ve been doing software development for more than 10 years, and API design for the last 5 years. I am currently responsible for mobile development for billiger.de, the most widely used and award-winning price comparison portal in Germany. We’re especially proud of our data security, which was just recently awarded too.

The company behind billiger.de is solute GmbH, which is based in Karlsruhe. They also have a few other brands: shopping.de, an online shopping platform for men and women, and friends communication, an online marketing agency. At billiger.de we’re about 150 employees.

Some of our stats:

300,000+

active daily users on billiger.de

500,000+

app downloads

70 Million

prices in the database

22,500 Shops

comparing 1M products

So clearly, the database and its performance on the server side is very important. Companies update their prices all the time, and on top there are all kinds of vouchers that can be applied. All of these are changing frequently – and you never know who updates their prices when. So, you can see the challenges – from a technical standpoint but also for consumers. It is hard to get the best price.

V: Tell me more about the billiger.de app – why did you decide to go for a native app?

A: Well, to be honest there was an existing native app when I came into the company. But aside from that, it’s essential for UX. We also need some offline capability for features like the notepad function or when users are in the store without an Internet connection and scan barcodes. Once they are online again, the query goes to the cloud – and the user gets his result.

V: So are most of your users on the app? Or rather web?

A: We definitely still have more web users, but user numbers are shifting to mobile more and more. Also, our web users are often one time users only. Our loyalty rate is much higher with app users, so we are trying to increase app installs. We’re seeing that – even on the web – the majority of users are coming from mobile devices. Therefore, we relaunched the website a couple of years ago to be responsive and mobile optimized. So we are focusing more and more on mobile, on both the website and through the app.

V: Why did you need to implement a local database? How is it implemented in your solution?

A: We need data persistence mainly for certain features. We’re still using SQLite, but it’s too much boilerplate code and too little fun. We have been using an ORM on top of SQLite until recently, but it didn’t work well in combination with Proguard on some Android versions anymore. So it resulted in lost data. We’re currently using ObjectBox in the billiger.de Pro version and in a fun new project called PricePretzel, which gives users the best price actively and tracks savings. In these projects, ObjectBox has proven its worth, so we want to migrate the billiger.de app too.

V: Yes, SQLite with an ORM can get very messy. So, why did you choose ObjectBox as the alternative?

A: I looked at several SQLite alternatives and ObjectBox looked interesting. The main decision factors were: ease of integration, stability, and performance. But ease of use and integration were really the most important factors. Stability and enough performance were rather basic necessities. We found ObjectBox really easy to use – we did the migration and everything and because ObjectBox handles that automatically, it was really simple.

We found ObjectBox really easy to use – we did the migration and everything and because ObjectBox handles that automatically, it was really simple.

V: So did performance matter to you at all?

A: For our needs, performance was secondary. Obviously the performance needs to be good enough, but we do not have super high requirements regarding performance.

V: Do you do any sort of synchronization

A: Synchronization obviously is a super interesting feature and we are keeping an eye on it once it is publicly released. From the setup we have, we would need to do it with a connector to our existing database. Currently the web data and app data are separated and we are working on integrating them. So, this needs synchronization.

V: Which other tools do you use in your solution/are you excited about?

A: Retrofit from Square, a networking library, we recommend it to everyone and it works super well with ObjectBox. Both libraries work well together with our business objects. Retrofit fetches the fresh data from our servers and deserializes it into our business objects, which are then persisted with ObjectBox without any additional boilerplate code.

V: billiger.de has over 500.000 downloads and about 4 stars on average – how many daily users does the billiger.de app have? Do you have peak times?

A: Obviously holidays like Christmas and Easter are busier. During the day, early evenings get the most traffic – about 1000-2000 daily active users in the billiger.de app, 200 in our Pro-app, and iOS is similar. As I shared before, we get about 300k daily users on the website.

V: Thanks for sharing, and for talking with me today. Any last words?

A: Thank you for having me! I am looking forward to do more with ObjectBox and am very excited about what comes next!

Why Android developers should care about Edge Computing 🚀

Why Android developers should care about Edge Computing 🚀

What is edge computing? 🤔

Today, over 90 percent of enterprise data is sent to the cloud. In the next years, this number will drop to just 25 percent according to Gartner. Where is the rest of the data going? It’s not going anywhere. It is being stored and used locally, on the device it was created on. This is edge computing.

Mist, fog, edge, cloud – the terms ☁️

To bring some light into the terminology mess: The terms “mist” and “cloud” constitute the ends of a continuum.

Mist covers the computing area that takes place on really tiny, distributed, and outspread devices, e.g. humidity or temperature sensors. To make it a bit more tangible: These devices generally are too small to run an operating system locally. They just generate data and send it to the network.

As opposed to this, the cloud refers to huge centralized data centers.

The terms “fog” and “edge” fall within this continuum and – depending on whose definition you follow – can be used interchangeably.

Adapted from Peter Livine (Andresseen Horrowitz)

Why is the edge cycle happening again just now? 👇

The underlying megatrend enabling this shift is cheaper and more efficient hardware, as well as the emergence of edge databases. Edge databases are specifically designed to run on the edge and therefore lean and efficient. Both the number of mobile and IoT devices, and alongside data volumes are exploding at exponential rates. At the same time computing capabilities on the edge level are advancing faster than those on the cloud level. So, the edge has increasingly more power – power that is currently often underused.

New applications and requirements drive the shift to the edge:





Advantages of setting your project up in the cloud ☁️



So, what about the cloud; do we still need it in this era of Edge Computing? Setting up your project in the cloud has some advantages: First of all, the setup itself is comparably easy, as the cloud servers are managed by another organization. This also means that you do not need to worry about scalability of your servers or data loss, i.e. the need for redundancy, reducing overall downtimes. Additionally, cloud systems also are well tested, automatically updated and often encryption mechanisms are provided natively. This eases up on administration.  Generally, you can use the cloud rather quickly without worrying about lengthy and error-prone setup tasks. Using servers also centralizes the logic: clients will just call a unified interface (e.g. Web/REST).



A typical IoT-setup would often be centralized and look like this today:



Advantages of running your application on the edge 🗡️



Running an application on the edge, e.g. your Android phone, a Smart Home Server, or in the car, has a couple of advantages:

  • The application works everywhere, all of the time (offline / online)
  • Great supersmooth User Experience (UX) as the app can respond in (near) realtime
  • Data stays where it was produced and belongs, the user maintains data ownership
  • Cloud / Connectivity costs go way down



 Some tangible use cases for edge computing:

  • Many Mobile Games run on the edge. As a game developer you really want your users to be able to engage with the game whenever they feel like it and have the time. And as a gamer, you may well want to play when offline, for example when commuting on the underground. Also, gamers really care about the user experience with very smooth animations and high-fidelity visuals.
  • Autonomous driving as well as any human safety application needs to work independent from an Internet connection and in realtime. Imagine crashing because the car was trying to connect to the cloud or still waiting for the database to respond.
  • Smart home or smart health applications should work even when there is no connection, but moreover: Why should you personal health data leave your private space? You probably would want to own that data and keep it safe in the local environment. That way it is much less likely that s.o. will try to hack your individual data versus millions of centrally stored data.
  • Predictive maintenance apps usually need to process tons of data or high-fidelity data like video streams. Transferring all this data to the cloud usually means such high cloud costs that the project becomes unprofitable. Therefore, they usually are run on the edge and only aggregated data transferred to a central server.
  • In Industry 4.0 / smart factory / Industrial IoT (IIoT) settings you often lack connectivity, so applications need to run on the edge.

Is the edge eating the cloud? 🍴

Unlikely. Often you want some data accessible from anywhere. Synchronizing parts of the data to the cloud (or an on-premise central server) allows you to combine many of the advantages from edge and cloud computing. Thus, the edge is a natural extension of the cloud that makes applications all the more powerful. We believe that future scenarios will often look like this:







This line of reasoning is supported by the fact that all major cloud companies, e.g. Amazon, Google, Microsoft, are pursuing an edge strategy.



Why should Android developers care about Edge Computing? 🚀

Edge computing and improved speed for Android, Android libraries and related products for developers were two clear sub-themes at the 2019 I/O conference – obviously low latency is a major competitive advantage.

Here is why designing your app to run on the edge will help you be successful on the Play Store: There are roughly 2.1 mill. Android Apps to choose from today in the Play Store. To stand a chance in that market you need to delight your users and get good app store ratings. Edge Computing delivers on the app traits users care about most: performance, security, and availability.



Users care about performance – a lot 💨

Whenever an app responds to a query directly instead of taking a round-trip to the cloud and back, it should be faster. More importantly, you can measure and optimize more reliably, as the latency is independent from the network connection. This enables the fast high-quality digital experience consumers want.

  • Reliable performance was found to be the second most important trait for app users in a study by PacketZoom.
  • Most mobile users, namely 96%, say app performance, such as speed and responsiveness, is important for them.
  • A study by appdynamics found that more than eight out of ten respondents had deleted or uninstalled at least one mobile app because of performance issues.
  • The same study found that 44% of respondents closed the app when experiencing poor network performance, but even worse: 32% even uninstall the app altogether. They also found, the reverse is true for fast performing and reliable apps with usage increasing.
As an Android developer you also know that many consumers cannot or do not care, why an app is not working. If the application is not working or just responding very slowly, users are dissatisified and annoyed. Therefore, as the developer you need to make sure your app always performs well.

“When your app depends on a network, latency is out of your control.”

Now, you might need to query data from the network. That’s fine; if most of your app is running independent from a connection, there are tons of ways to optimize user experience for connectivity loss and network latency.





Security is a hot topic and can be a USP 🛡️

Users care about security, and this is a trend that will – in the face of the loss of huge amounts of personal data by tech giants – only continue to grow. When you leave data at the edge, on the device of the user, data security is much easier to provide. On top, data ownership is clear, easing up on data privacy.



Data is much more secure stored in one place  than when transferred over the network – possibly again and again and again. Android provides a good basis for keeping internally stored data safe. If data security and privacy are important for you, your app, or your users, think about keeping data locally and then only synchronizing data you really need accessible from anywhere. Last not least, while an individual phone may be hacked, it is less likely to occur and only an individual dataset is compromised (as opposed to millions of datasets).





Offline first – deliver an always-on-feeling 🔌

Users do not care about connectivity, they simply want to use the application when they want to – at home, in a department store, in a train, on a flight, on vacation. And when they can’t access an app, their user experience is bad. Even today in a highly connected world, there are lots of times where people have no connectivity or need to switch data off to save battery. The app that supports them in these times ;), is the one they will love and use

The most important advantage of doing an offline-first app is the availability of the app. Google translate is a great example of an app that you want to be offline-capable. Chances are that when you need it most you are in a place where you do not have a (affordable) connection. But you might also appreciate being able to read and search through your mails when you are on a plane too. Or type WhatsApp messages that go out when connected again, or just enjoy a round of Subway Surfers.

Offline-first apps make it possible to move content off the server and onto the phone. If an app only has to go to the server when it needs to, rather than all the time, it will be faster and more reliable. This is particularly significant where content doesn’t change often, but users require fast access.

The improvements in Android Q to Android’s Neural Networks API (NNAPI) and the size reduction of the model means Android phones are Edge AI ready and open tons of new possibilities for fast apps running on the edge.

With the recent changes in the Play Store rating, boosting the technical performance of your app will have an even greater impact than before.

But what about 5G?

First of all the 5G rollouts and uptake still will take some time, but if you are reading this you are building a business now. Secondly, while it will bring a faster network connection to many areas, there are caveats to a central cloud-based application that won’t change:

  1. When you are mobile, at some point you will be offline or your connection flaky.
  2. Storing and transferring data to the cloud is costly.
  3. Storing and transferring data unnecessarily to the cloud is wasteful.
  4. Storing data centrally yields higher security risks for your user’s data; transferring data is an additional security risk. Any data you can just keep locally is safest.
  5. If you leave the data with the user, data ownership is clear and you do not need to worry about privacy.

How do I bring my Android app to the edge?🏃

As an Android developer, chances are, you are already doing Edge Computing in many of the apps you are developing.

First of all, offline-first does not work with typical web pages. Usually, you would go for a native app, or alternatively, a progressive web app (PWA) or similar technology. Apart from multiple UX benefits and speed, most users prefer native apps and users still spend 80% of their mobile usage time in apps.

Secondly, for an offline-first architecture you need a local storage as a primary source of data, e.g. a database. Changes to data are made in this layer. Application also can and usually do have networking components to synchronize data to a server. However, this connection to the backend is mainly used in the background to synchronize the local database.

So, why does not everybody do it all the time? Well, there are use cases where it does not make sense to go the extra mile for the limited functionality that edge computing would bring, e.g. in a parking app. Obviously, most relevant data points like your car and the availability of parking spots are changing all the time. So, you really are dependent upon a constant connection, or rather several constant connections: From the spots to the cloud and from the cloud to the app. However, there is another reason: Offline-capable apps are hard. That is why we developed ObjectBox Sync.



Does any app need to run at the edge? ⚖️

As always, there are some cases where the cloud makes perfect sense, indeed is the only option – and the same is true for the edge. You need to assess what you want to achieve and where the value lies for your application and users.

Sustainable Computing: Why the edge is saving the world 🦸

If you do not need to push all the data to the cloud, where large chunks of it might not even be used, you might want to take a step back and consider the broader picture: What do all these billions of mobile and IoT devices (that are quite capable) do while they wait for the cloud to respond? Nothing.
Sending data to the cloud unnecessarily is wasteful in two respects: Use of bandwidth and server capacity (which comes down to infrastructure, electricity and physical space) and the big waste of underused resources.

What is Edge Computing?

What is Edge Computing?

Today, over 90 percent of enterprise data is sent to the cloud. In the next years, this number will drop to just 25 percent according to Gartner. The rest of the data is not going anywhere. It is being stored and used locally, on the device it was created on – cars, trains, phones, cameras etc. This is edge computing. At least in our pragmatic definition.

Obviously, this is cutting the discussion short. With edge consortia springing up like mushrooms, there is no lack of overlapping definitions around the terms Edge Computing and Fog Computing.



From mist to fog to edge – a short overview

To bring some light into the terminology mess: The terms “mist” and “cloud” constitute the ends of a continuum.In our definition, the edge covers everything from cloud to any end device, however tiny and limited it may be. In this definition, there really is only the cloud and the edge.

However, some authors additionally use the terms fog computing and mist computing.

Mist covers the computing area that takes place on really tiny, distributed, and outspread devices, e.g. humidity or temperature sensors. To make it a bit more tangible: These devices generally are too small to run an operating system locally. They just generate data and send that data to the network.

As opposed to mist computing, the cloud refers to huge centralized data centers. The terms “fog” and “edge” fall within this continuum and – depending on whose definition you follow – can be used interchangeably.

Form edge to cloud and back: History repeating itself

If these terms seem familiar to you, that is probably because edge computing is just another cycle in a series of computing developments. Computing has seen constant turns between centralized and distributed computing over the decades, and with recent developments in hardware capacity, we’re again entering into a decentralized cycle.



One to rule them all?

Neither the cloud nor the edge is a solution for all cases. As always it depends. There are cases, where the edge makes more sense than the cloud and vice versa. Most cases however, do need both.



Read why Android developers should care about Edge Computing.



Which edge consortia are there?

Which edge consortia are there?

There is no lack of consortia defining terms around edge computing – it’s a lot like the Judean People’s Front against the People’s Front of Judea. After a year of battle, the most prominent edge consortium emerging currently seem to be EdgeX under the umbrella of the Linux Foundation – fully open source, while also largely supported and driven by Dell, who initiated it. Other notable players trying to get a foothold in this space is the Deutsche Telekom with MobiledgeX and HPE with Edge Worx. A European counterpart, ECCE, formed in spring 2019 and might be worthwhile watching, as it is supported by many industry players like e.g. KUKA, Intel, and Huawei.
